Open mesh drains and dries inside the same cycle, so sets don't come back from the washer wet. Grips fold flat, so loaded trays still stack.

Wire Mesh TraysCXMT / CXML

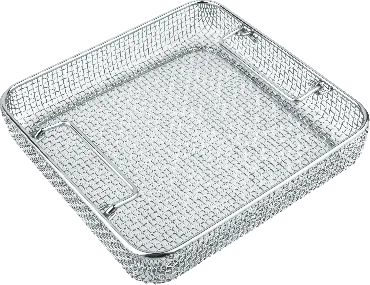

Wire Mesh Trays — Single Frame

Single Frame

Material: 304(ASTM)
Steel sheet: 1.0mm
Mesh type: Woven 5.5 x 5.5 x 1.0mm
DIN footprint: full DIN, 480 × 250 mm

What is a wire mesh sterilization basket?

A wire mesh sterilization basket is a basket woven from stainless steel wire and bound in a rigid frame, which drains and dries faster than a solid tray because the mesh is open on every face.

Sizes

5758 article numbersL × W × H mm

Tray

Row	Article no.	Dimensions	Notes
1	CXMT-8010	540 × 255 × 50 mm
2	CXMT-8070	255 × 245 × 50 mm
3	CXMT-8904	500 × 150 × 100 mm
4	CXMT-8014	540 × 255 × 70 mm
5	CXMT-8072	255 × 245 × 60 mm
6	CXMT-8907	850 × 200 × 100 mm
7	CXMT-8015	540 × 255 × 100 mm
8	CXMT-8074	255 × 245 × 70 mm
9	CXMT-8919	355 × 100 × 90 mm
10	CXMT-8020	485 × 255 × 50 mm
11	CXMT-8075	255 × 245 × 100 mm
12	CXMT-8925	440 × 110 × 45 mm
13	CXMT-8022	485 × 255 × 60 mm
14	CXMT-8062	300 × 240 × 60 mm
15	CXMT-8926	440 × 110 × 65 mm
16	CXMT-8024	485 × 255 × 70 mm
17	CXMT-8090	255 × 120 × 50 mm
18	CXMT-8909	355 × 100 × 90 mm
19	CXMT-8025	485 × 255 × 100 mm
20	CXMT-8092	255 × 120 × 60 mm
21	CXMT-8906	410 × 260 × 110 mm
22	CXMT-8202	480 × 300 × 65 mm
23	CXMT-8094	255 × 120 × 70 mm
24	CXMT-8901	350 × 160 × 50 mm
25	CXMT-8040	405 × 255 × 50 mm
26	CXMT-8095	255 × 120 × 100 mm
27	CXMT-8902	260 × 190 × 50 mm
28	CXMT-8044	405 × 255 × 70 mm
29	CXMT-8900	300 × 120 × 64 mm
30	CXMT-8050	380 × 250 × 50 mm
31	CXMT-8045	405 × 255 × 100 mm
32	CXMT-8914	400 × 250 × 50 mm
33	CXMT-8903	380 × 190 × 85 mm
34	CXMT-8905	5 × 40 × 250 mm	50
35	CXMT-8921	400 × 250 × 70 mm
36	CXMT-8923	250 × 240 × 70 mm
37	CXMT-8908	480 × 250 × 50 mm
38	CXMT-8912	400 × 300 × 50 mm
39	CXMT-8922	250 × 190 × 50 mm
40	CXMT-8913	480 × 250 × 70 mm
41	CXMT-8911	400 × 370 × 50 mm
42	CXMT-8920	300 × 250 × 50 mm
43	CXMT-8916	480 × 250 × 100 mm
44	CXMT-8915	450 × 220 × 50 mm
45	CXMT-8927	650 × 650 × 30 mm
46	CXMT-8910	480 × 300 × 50 mm
47	CXMT-8918	250 × 240 × 50 mm
48	CXMT-8917	480 × 250 × 60 mm
49	CXMT-8924	250 × 240 × 60 mm

Lid (optional)

Row	Article no.	Dimensions
1	CXML-8900	540 × 255 mm
2	CXML-8902	405 × 255 mm
3	CXML-8901	485 × 255 mm
4	CXML-8908	380 × 250 mm
5	CXML-8905	480 × 370 mm
6	CXML-8904	255 × 120 mm
7	CXML-8906	480 × 250 mm
8	CXML-8903	255 × 245 mm
9	CXML-8907	250 × 240 mm
