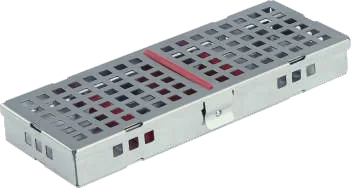

Square perforation through lid and base for full steam contact, in a cassette that still stays closed through handling.
Click the photo to enlarge — technical drawings carry printed dimensions
Square Pattern Cassette Trays
Round click-lock & hinged — flat and round-bottom
- Material
- 304 (ASTM)
What is a square pattern cassette tray?
A square pattern cassette tray is an instrument cassette perforated with a square grid through lid and base, giving steam a straight path to the contents while still latching shut through handling.
Sizes
8L × W × H mm| Row | Article no. | Dimensions | Notes |
|---|---|---|---|
| 1 | CXCC-1205 | 180 × 70 × 22 mm | 05 Instruments |
| 2 | CXCC-1207 | 180 × 95 × 22 mm | 07 Instrument |
| 3 | CXCC-1210 | 180 × 130 × 22 mm | 10 Instruments |
| 4 | CXCC-1220 | 260 × 180 × 22 mm | 20 Instruments |
| 5 | CXCC-9920 | 185 × 90 × 24 mm | 05 Instruments |
| 6 | CXCC-9921 | 185 × 112 × 24 mm | 07 Instruments |
| 7 | CXCC-9922 | 185 × 145 × 24 mm | 10 Instruments |
| 8 | CXCC-9923 | 265 × 185 × 24 mm | 20 Instruments |
Further sizes are manufactured to order — ask us for anything not listed.
Request a quote
Mass, load ratings, validation reports and material certificates are available on request.
